QT4-15 Fully Automatic Concrete Block Production Line
Explore the QT4-15 fully automatic concrete block production line with PLC controls, material feeding and hydraulic unit details. Send your block dimensions and project requirements for a configuration quotation.
Automatic concrete block production
The QT4-15 is a fully automatic concrete block production line for cement-based block manufacturing. This equipment overview introduces the main machine, material feeding mechanism, PLC control cabinet and hydraulic power unit.
To discuss a suitable configuration, send your required block dimensions, mould drawings, target output and site power supply. Confirm the final equipment list, mould specification and production layout in the quotation.
Key equipment details
PLC control cabinet

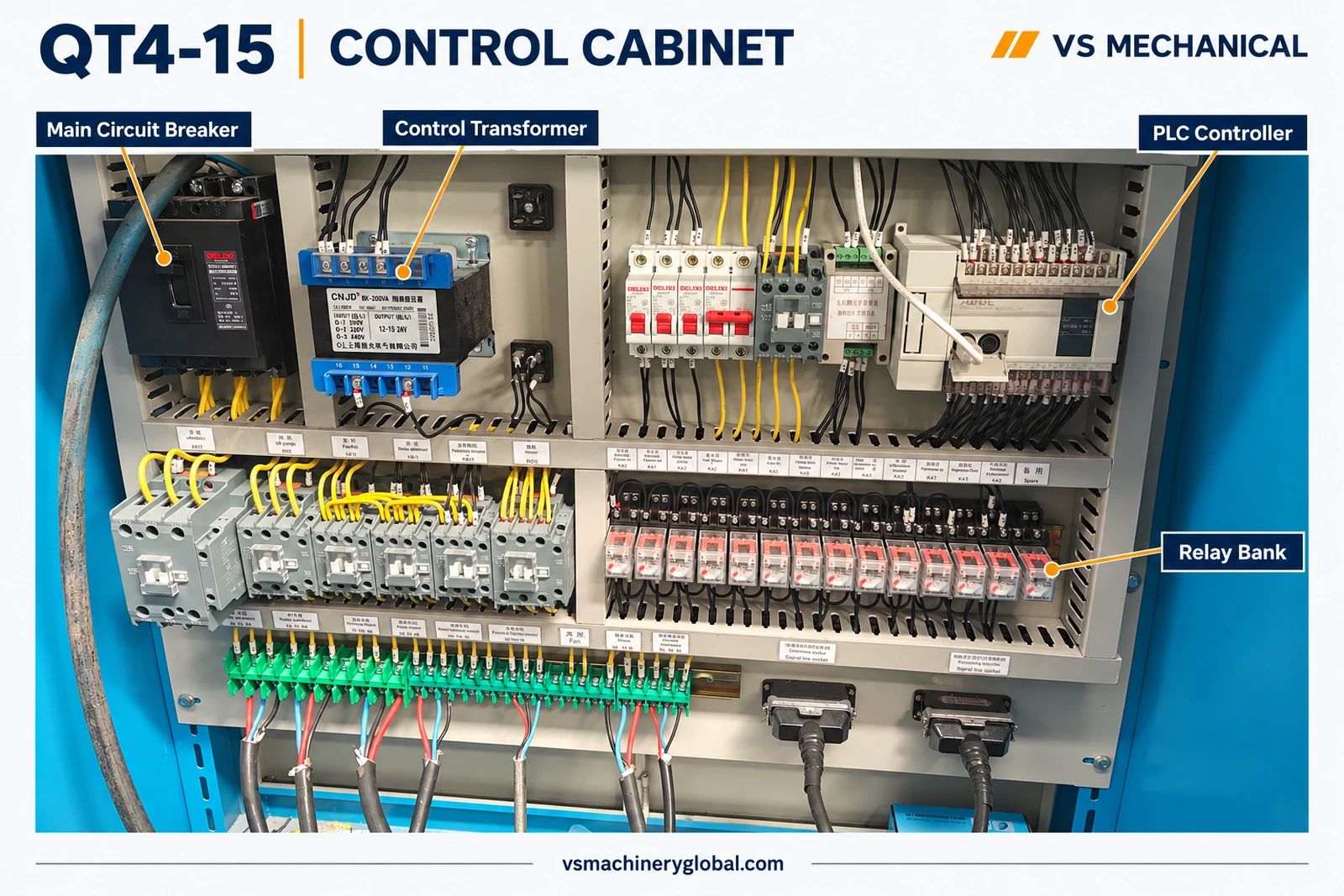

The cabinet view identifies the main circuit breaker, control transformer, PLC controller and relay bank. These labelled details help you identify the electrical control components when discussing operation and maintenance requirements.
Material feeding system

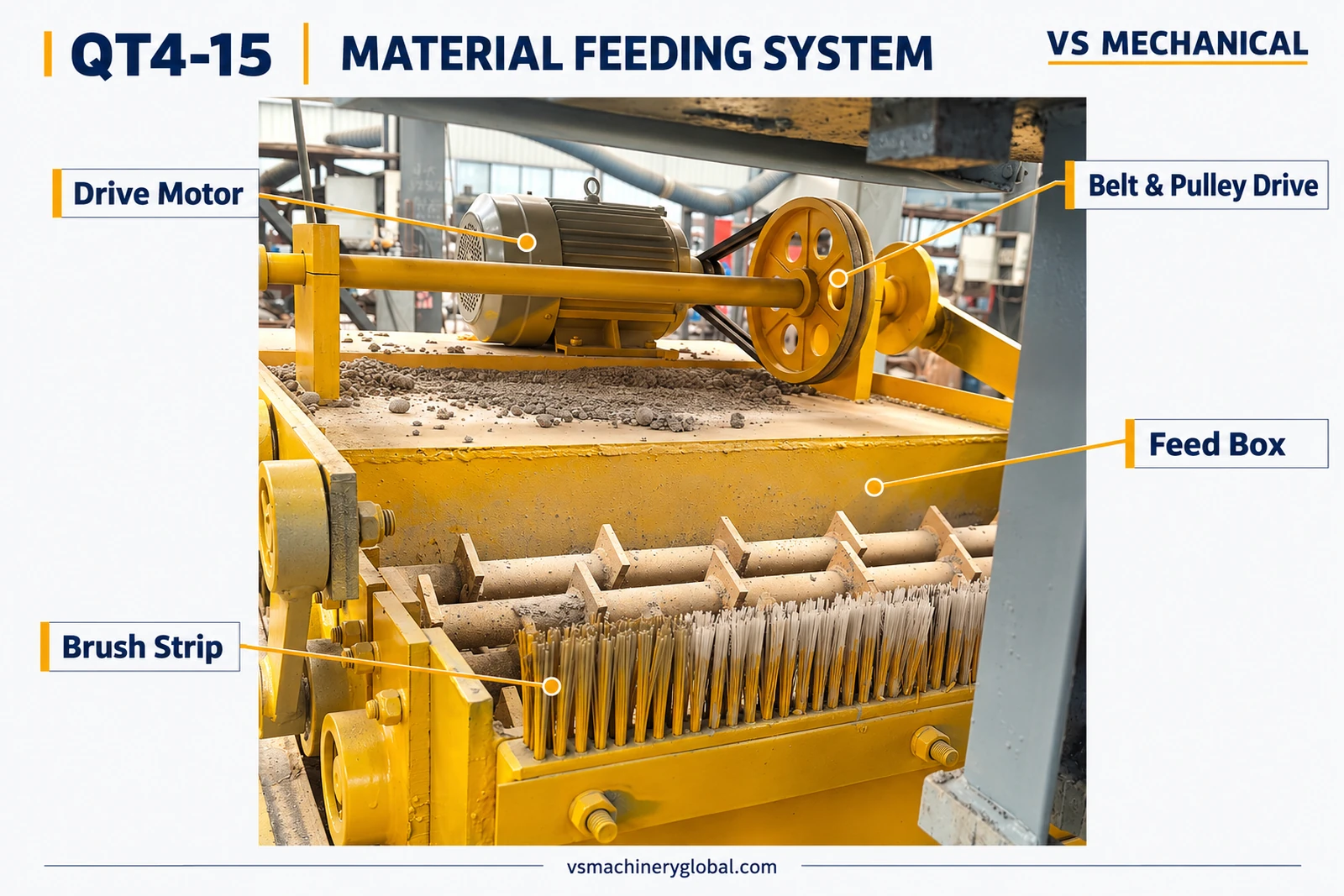

The feeding mechanism includes the motor, belt-and-pulley drive, feed box and brush strip shown in the detail view. Review the arrangement with your proposed material mix and block specification.
Hydraulic power unit

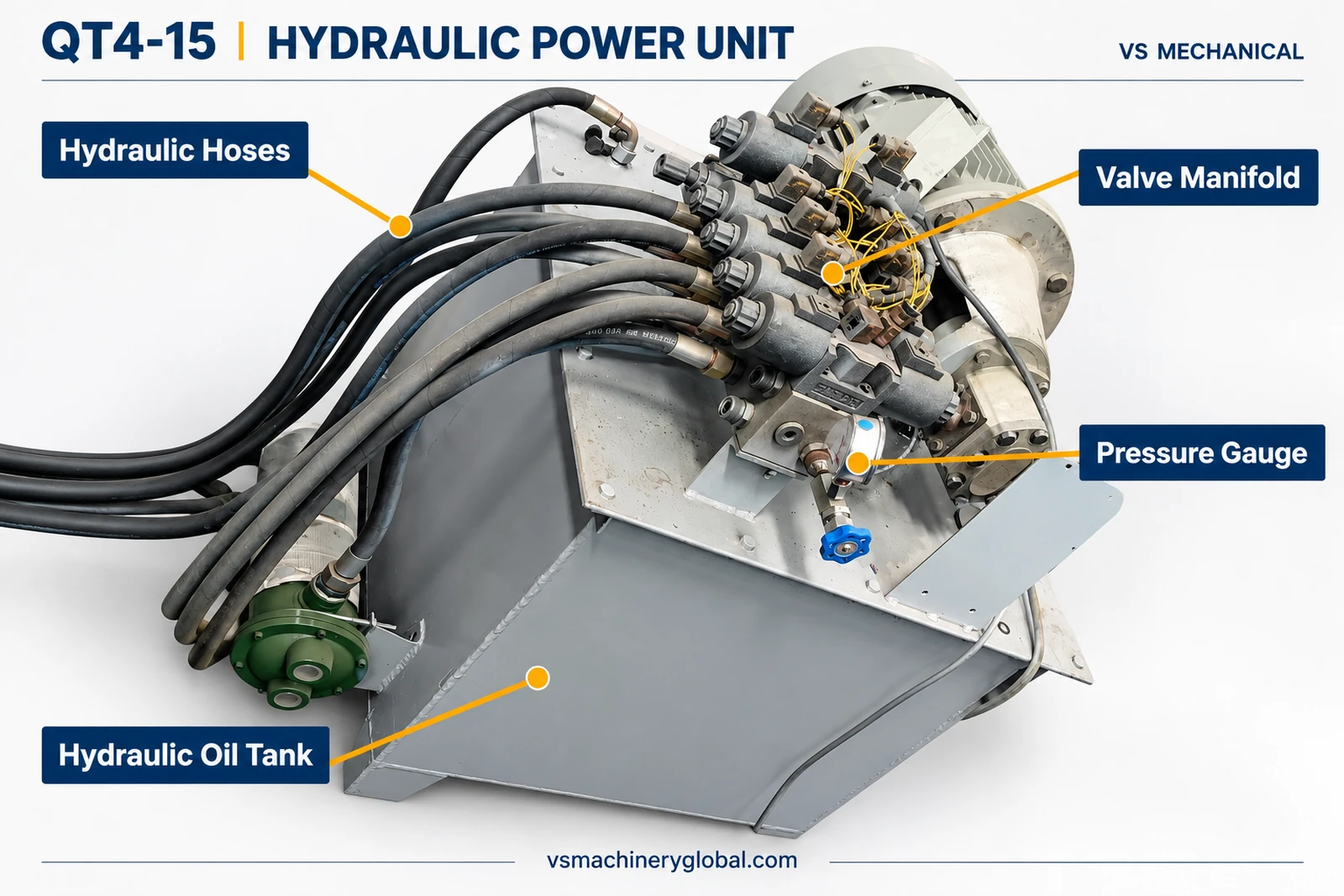

The hydraulic unit detail identifies the oil tank, valve manifold, hydraulic hoses and pressure gauge. The unit supplies hydraulic power to the connected machine mechanisms. Final pressure settings and maintenance requirements should follow the supplied machine documentation.
Technical data
The following reference values are from the supplied QT4-15 specification sheet. Confirm the final configuration before ordering. Main machine power is not the total connected power of the production line.
| Model | QT4-15 |
|---|---|
| Automation | Fully automatic production line |
| Raw materials | Cement, sand and stone aggregate |
| Moulding cycle | 15–20 seconds; actual cycle depends on the product and operating conditions |
| Main machine power | 24 kW |
| Pallet size | 850 × 550 × 25 mm |
| Listed weight | 4.5 t; confirm scope in the quotation |
| Listed workshop area | 150–200 m²; confirm whether storage and curing space are included |
| Listed mixer | JQ500; confirm scope of supply |
Workshop views

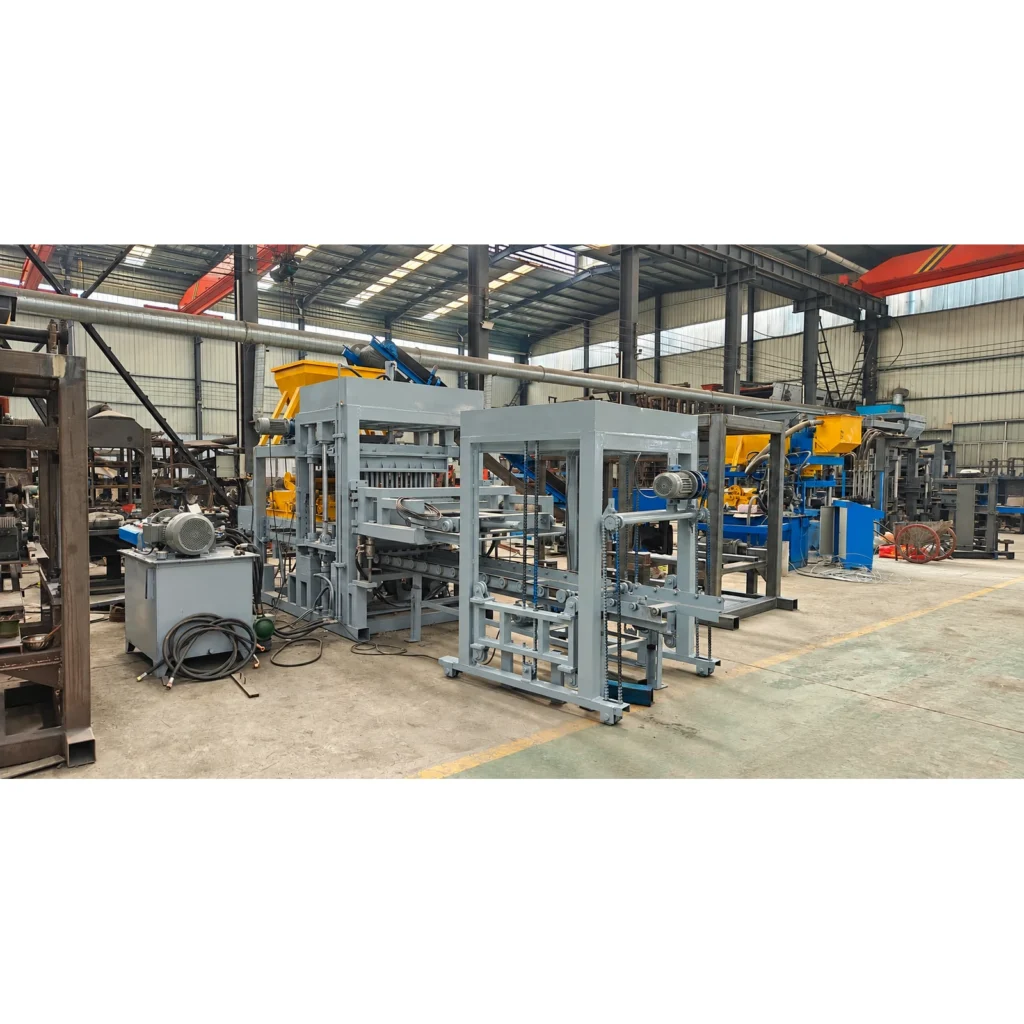

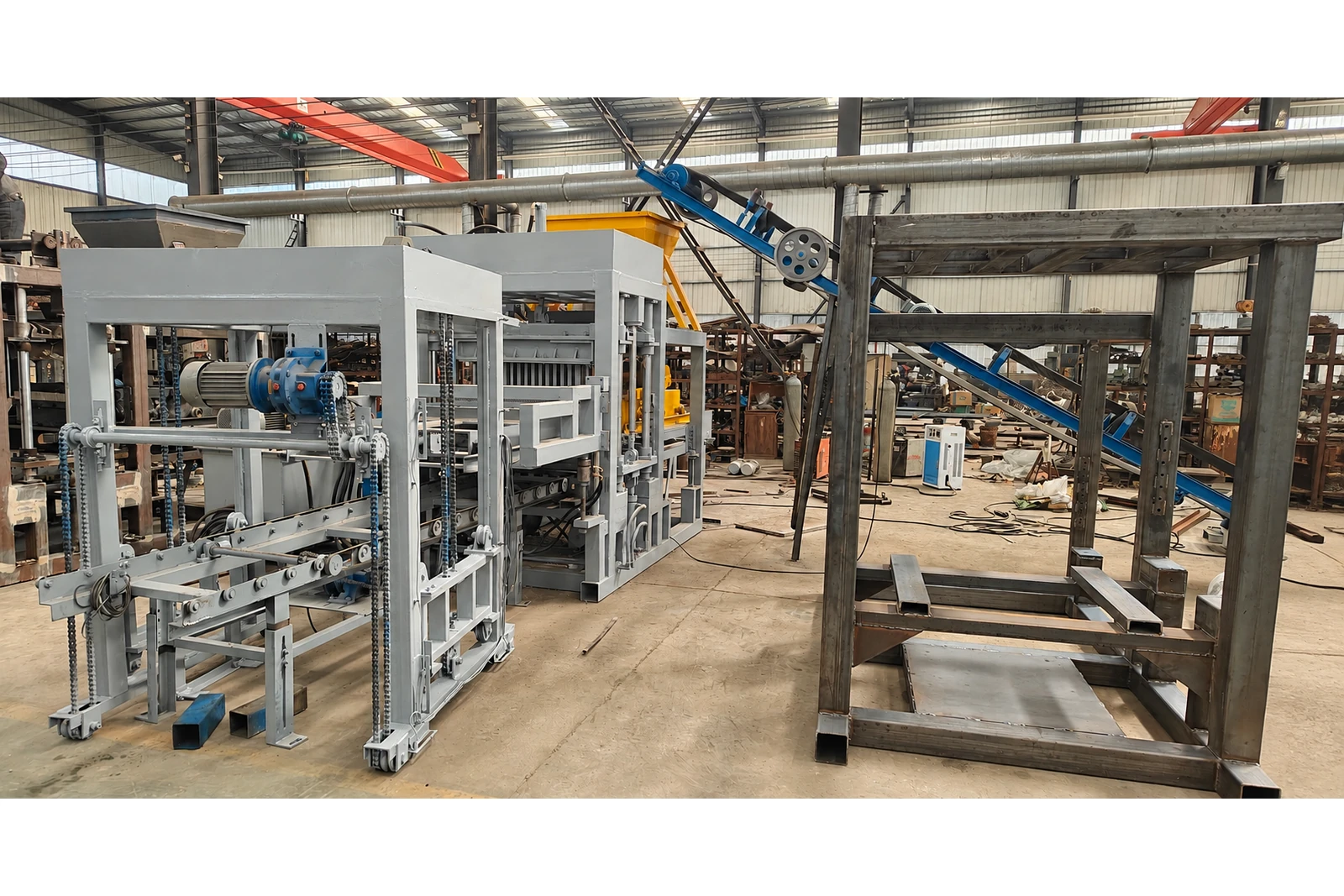

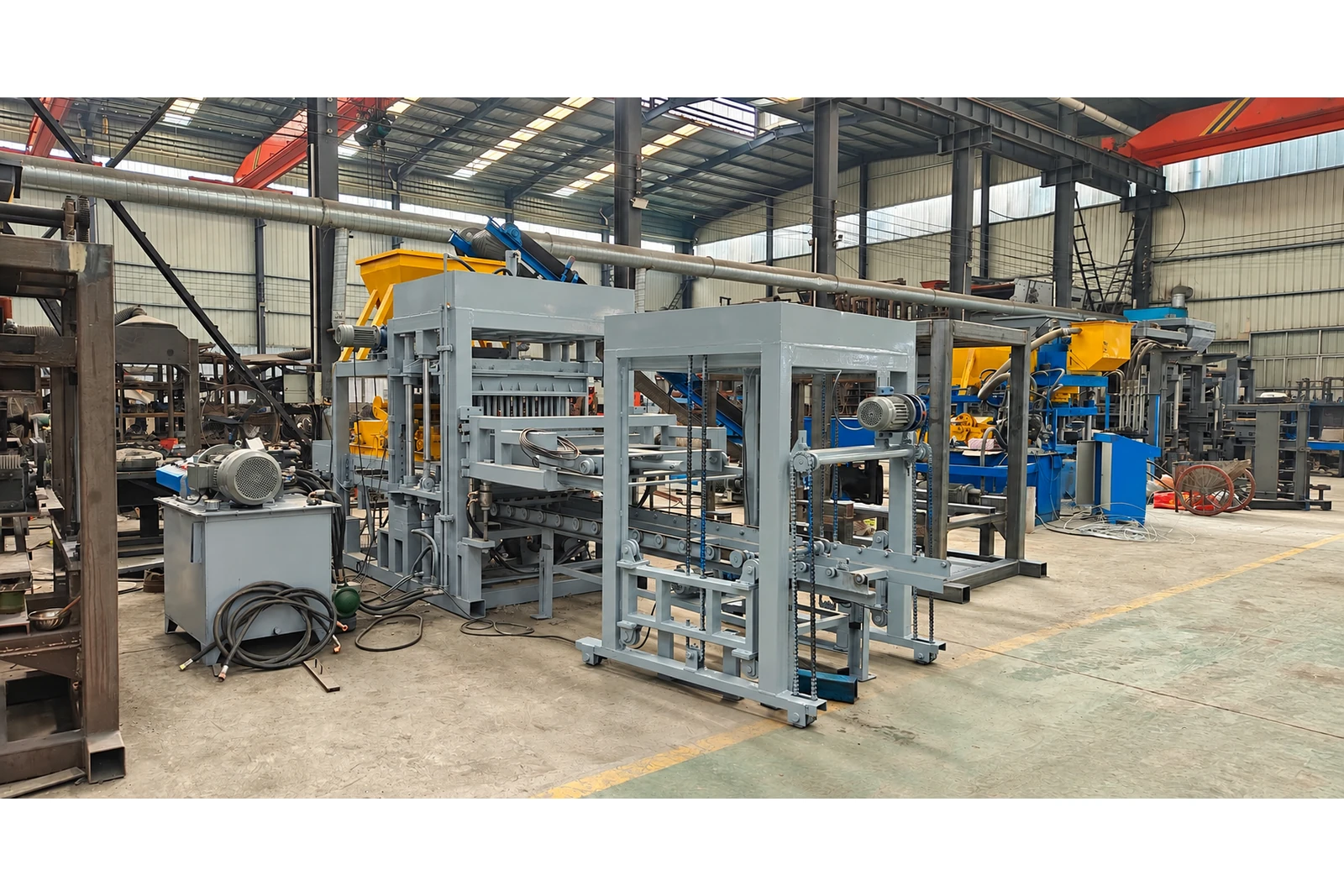

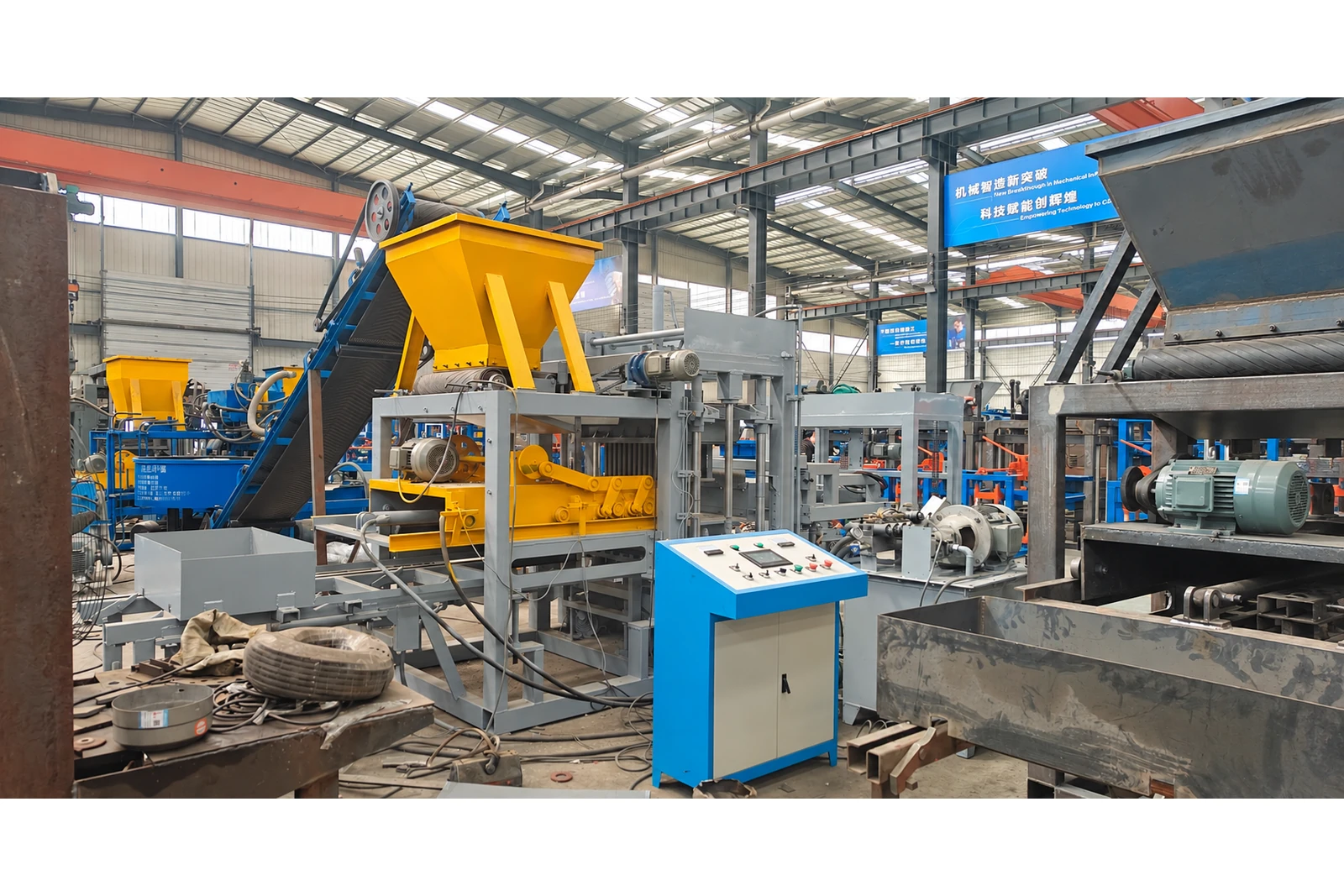

View the equipment from different angles. Images have been retouched for presentation; confirm detailed configuration against the final quotation and machine documentation.
Plan your QT4-15 configuration
- Provide the block dimensions, drawings and mould requirements.
- Specify your target output and working hours per shift.
- Confirm voltage, frequency, available power and installation space.
- Request an itemised list of included equipment, pallets, moulds and optional accessories.
Actual output depends on the mould, block format, material preparation, cycle time and handling arrangements. Ask for an output estimate matched to your intended product.
Frequently asked questions
What information is needed for a quotation?
Send your block sizes, target capacity, destination, site power supply and available workshop space. Include any specific mould or auxiliary-equipment requirements.
Does 24 kW cover the whole production line?
No. The supplied sheet identifies 24 kW as main machine power. Request the complete electrical load schedule for the final line configuration.
Which equipment is included?
The final scope of supply is confirmed in the quotation. Ask for quantities and specifications for the main machine, mixer, hydraulic unit, controls, conveyors, handling equipment, moulds and pallets.
