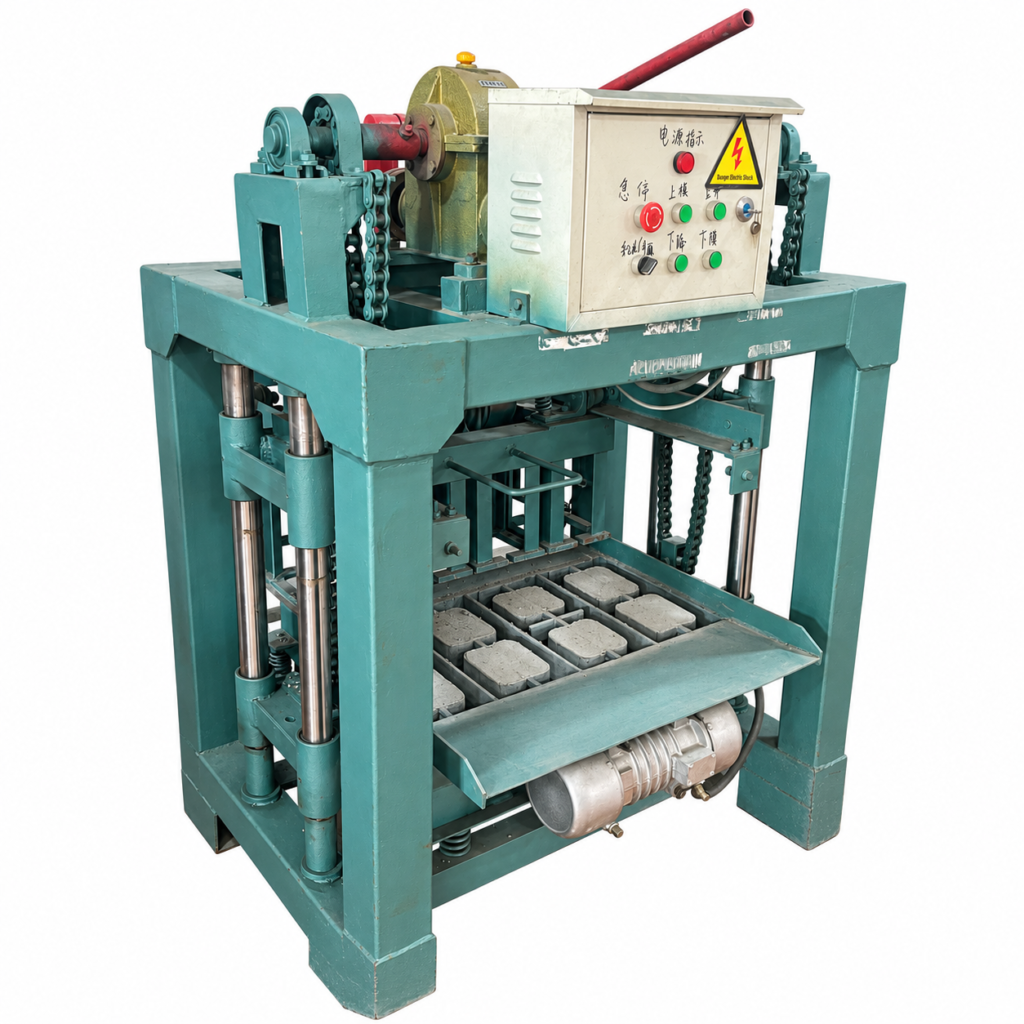

VS-4-35B Semi-Automatic Concrete Block Making Machine

Semi-automatic concrete block production

The VS-4-35B is a semi-automatic concrete block making machine. The machine performs forming and demoulding; all other production steps require manual work. It is intended for concrete block and brick production using suitable moulds and a cement, sand and aggregate mix.

The supplied specification sheet lists a 35-second forming cycle and 1–2 operators. Actual production depends on the block type, material preparation, handling and operator proficiency.

Block sizes and output per moulding cycle

The following outputs apply to the corresponding mould. Standard supply includes one mould set for one block size. Please specify your required block dimensions when requesting a quotation.

Product	Dimensions (as supplied)	Pieces per cycle
Hollow block	400 × 200 × 200 mm	4
Hollow block	400 × 150 × 200 mm	5
Hollow block	400 × 100 × 200 mm	7
Standard brick	240 × 50 × 115 mm	26

Choose the configuration for your project

The specification sheet lists versions with and without a hopper. The photographs show the machine without a hopper. Please confirm your required block dimensions and hopper requirement when requesting a quotation.

Custom moulds are supported. The final configuration and scope of supply will be confirmed in the quotation.

Standard supply

Item	Included quantity
Main machine	1 unit
Mould for one block size	1 set
Production pallets	10 pieces
Hand trolley	1 unit

How the machine is operated

Forming and demoulding are performed by the machine. All other steps require manual work, including material preparation, feeding, pallet handling and removal of finished blocks. This is a semi-automatic machine and requires operator involvement throughout production.

Mould selection and customisation

We recommend pairing each machine with 1–2 mould sets for the required block sizes. One mould set for one size is included as standard. Custom moulds are supported; please provide the block dimensions or drawings. Any additional mould set must be specified in the quotation.

Power supply

The machine can be configured for 220 V or 380 V to suit the customer’s local voltage requirements. Please provide the site voltage, phase and frequency so the electrical configuration can be confirmed before production.

Warranty and support

A one-year warranty is provided. Replacement parts are supplied free of charge during the warranty period; the customer is responsible for the shipping cost of those parts. Installation guidance and operating guidance are provided.

Production and packaging

Production is completed in 5–7 days. This is the production period, not the shipping or delivery time. The machine is packed in a wooden case. Please confirm the production schedule and transport arrangements for your order.

Concrete block sample gallery

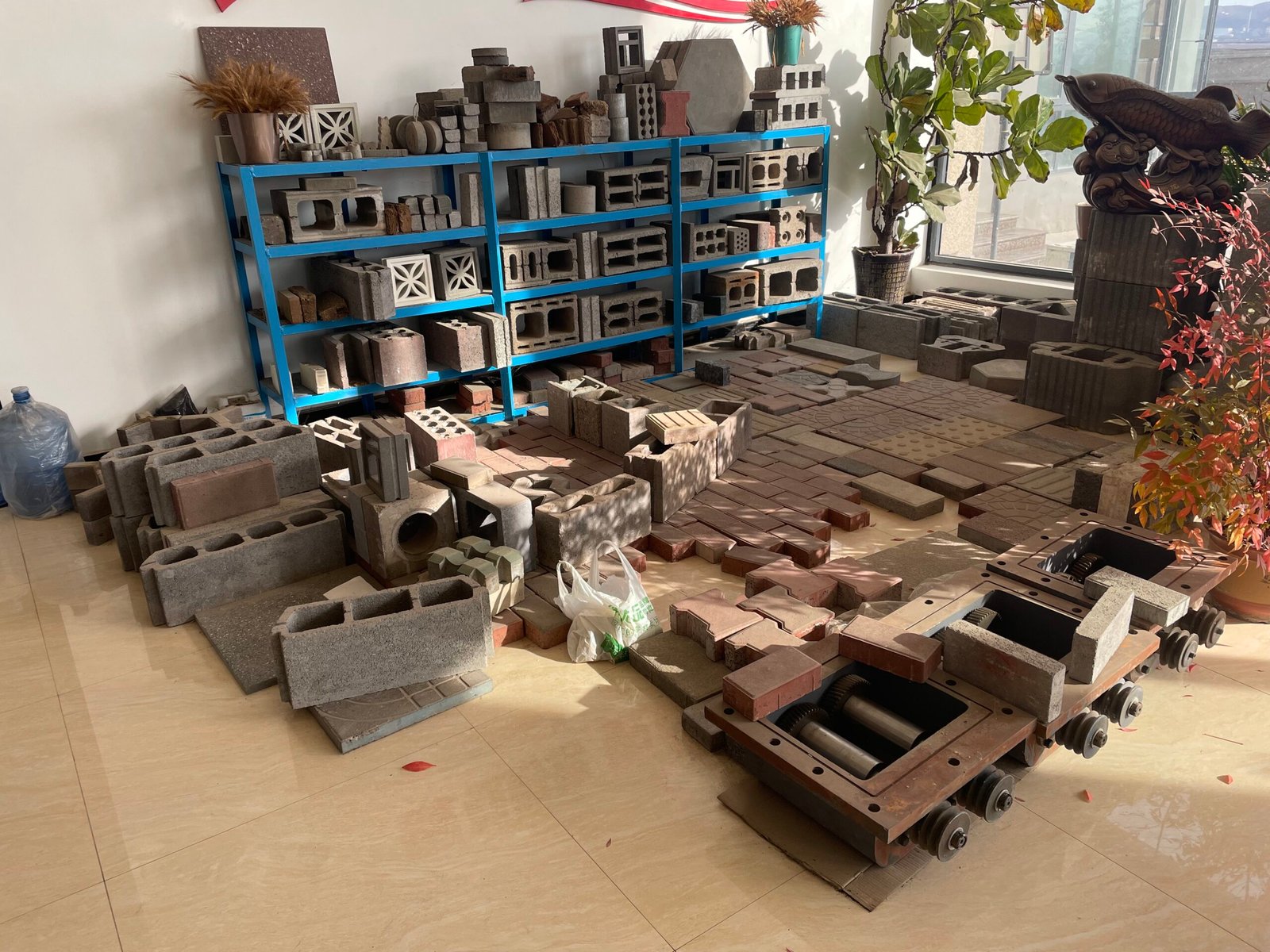

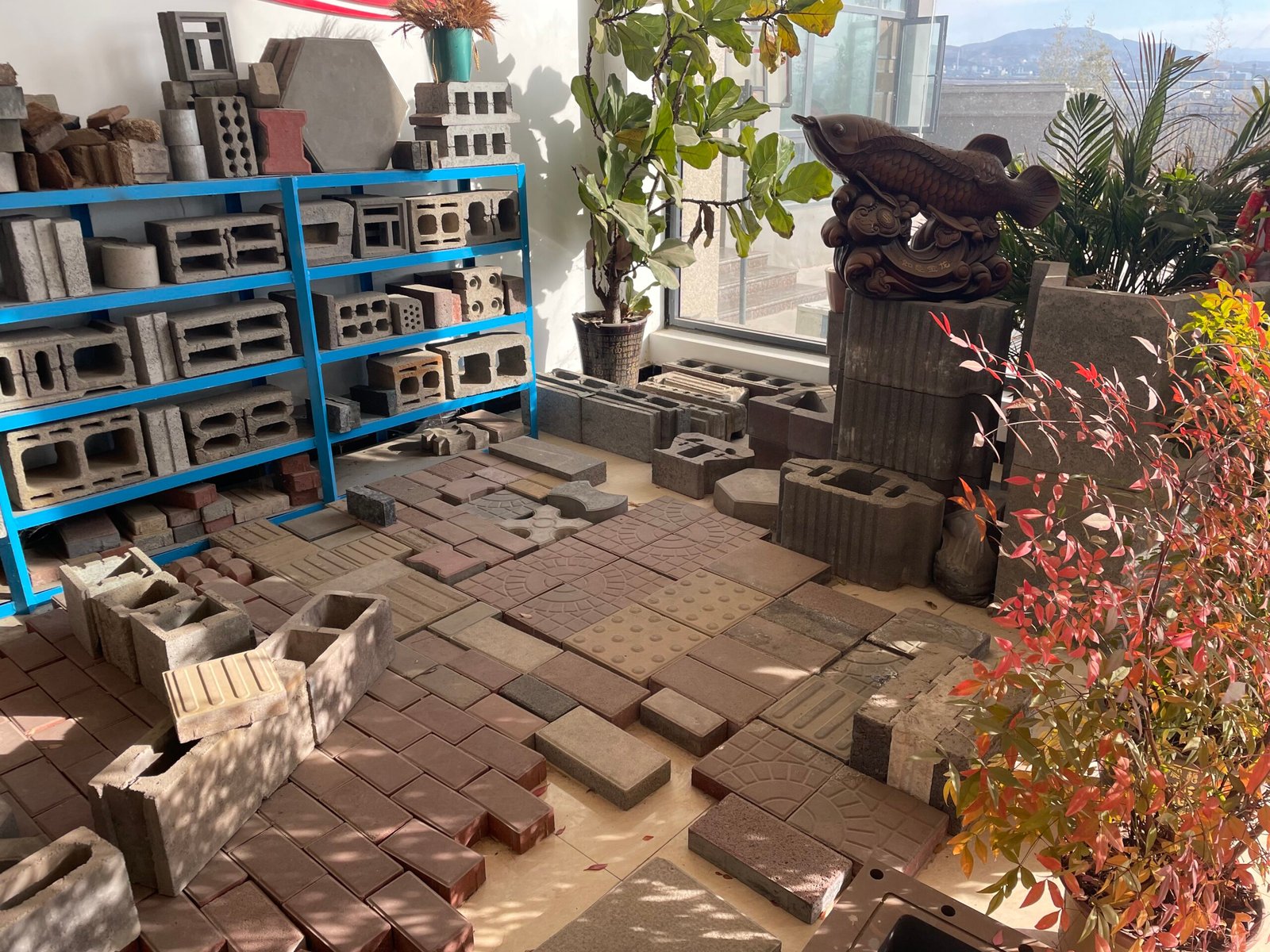

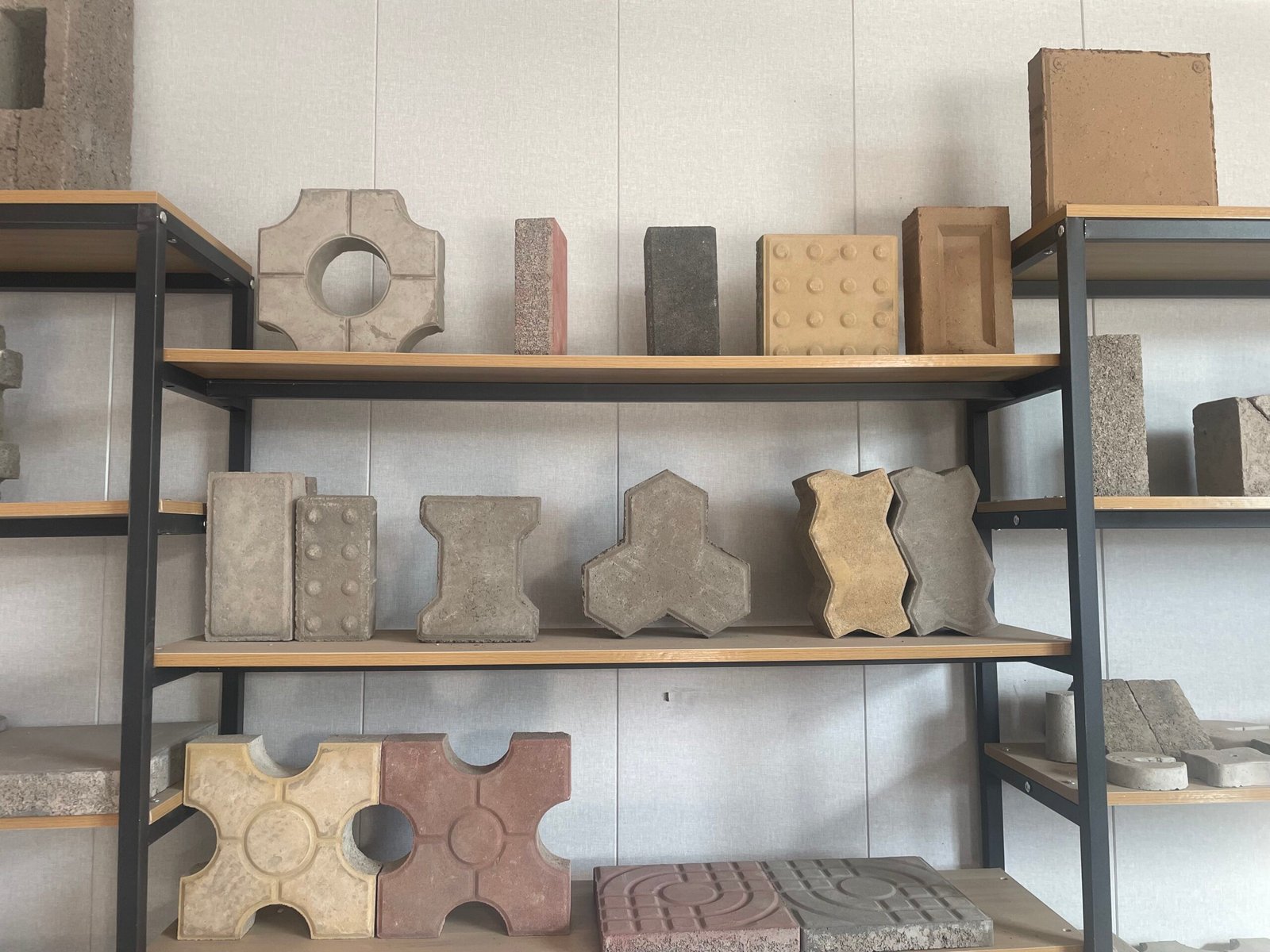

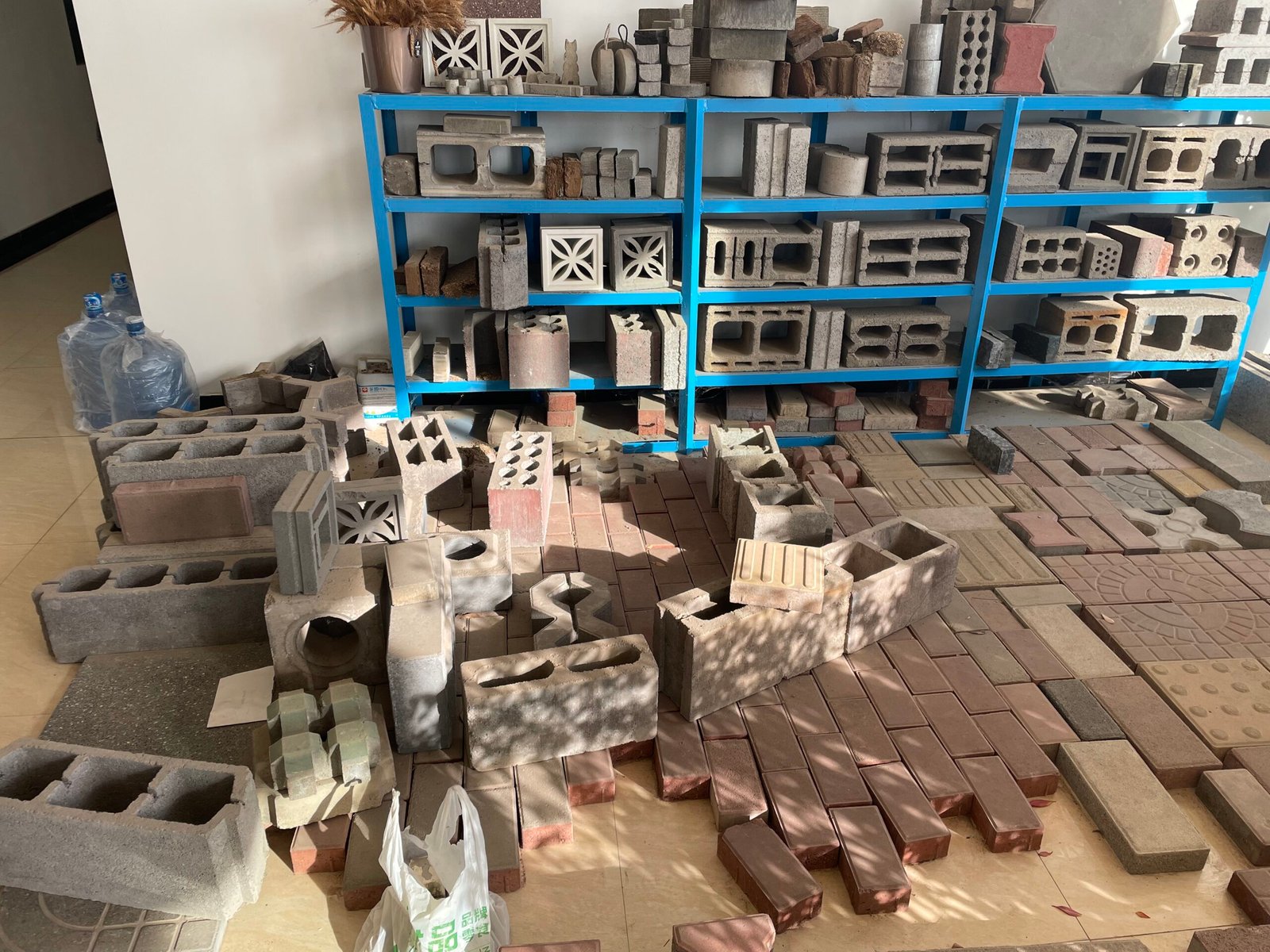

Real photographs of concrete block and paving samples. Use these examples to discuss your preferred shape and dimensions. Suitability for the VS-4-35B and the required mould must be confirmed for each design.

Product photographs

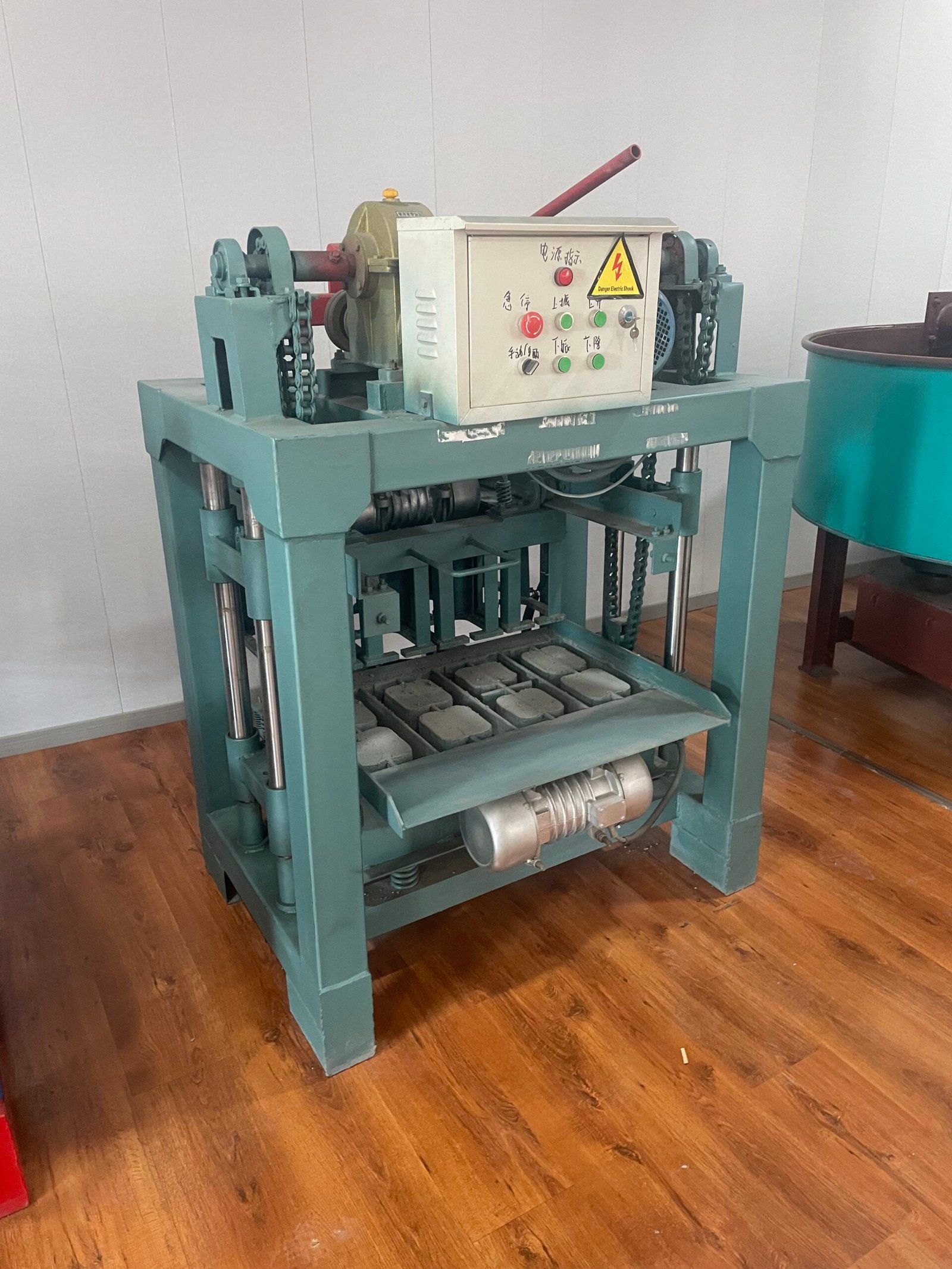

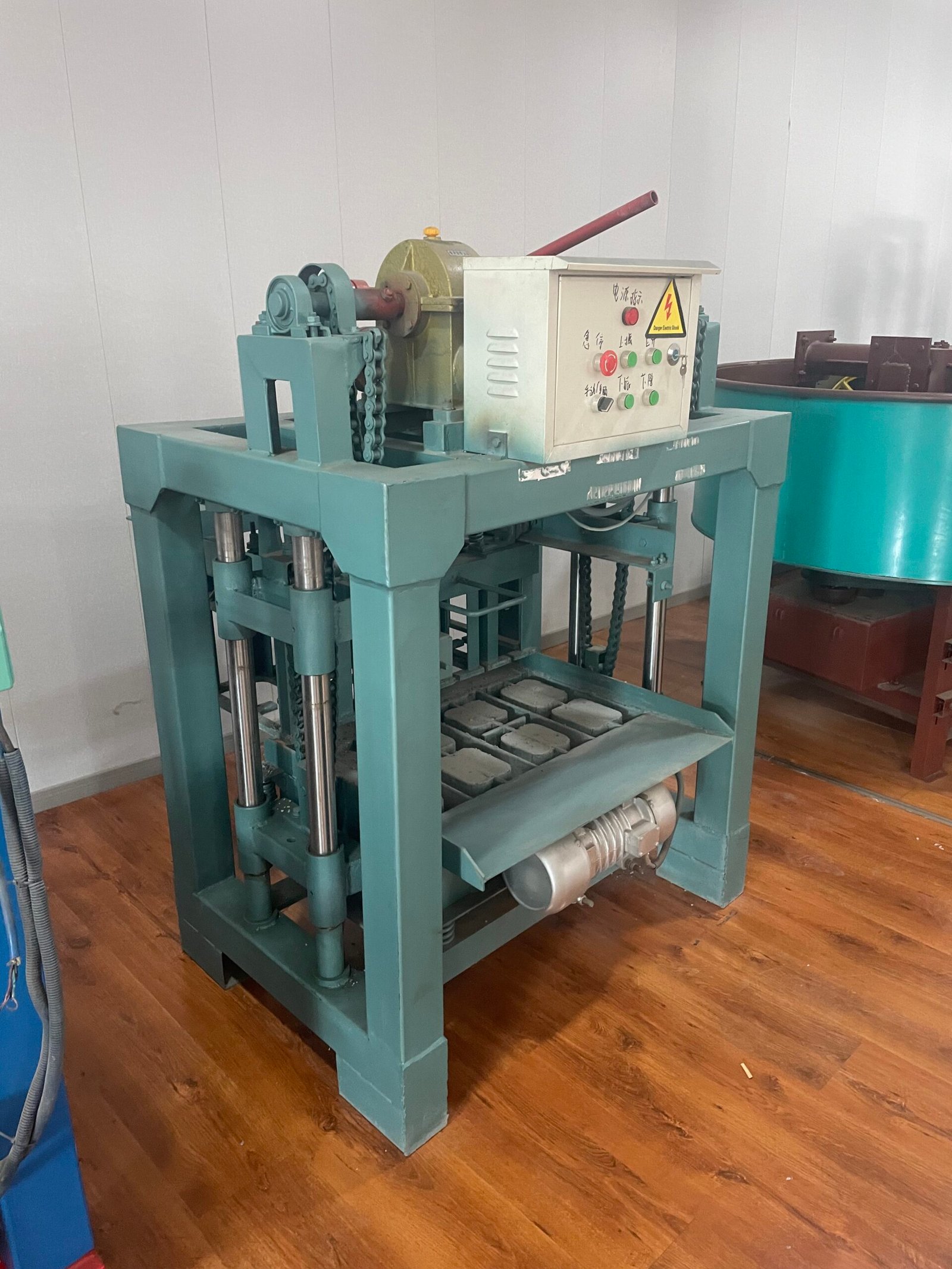

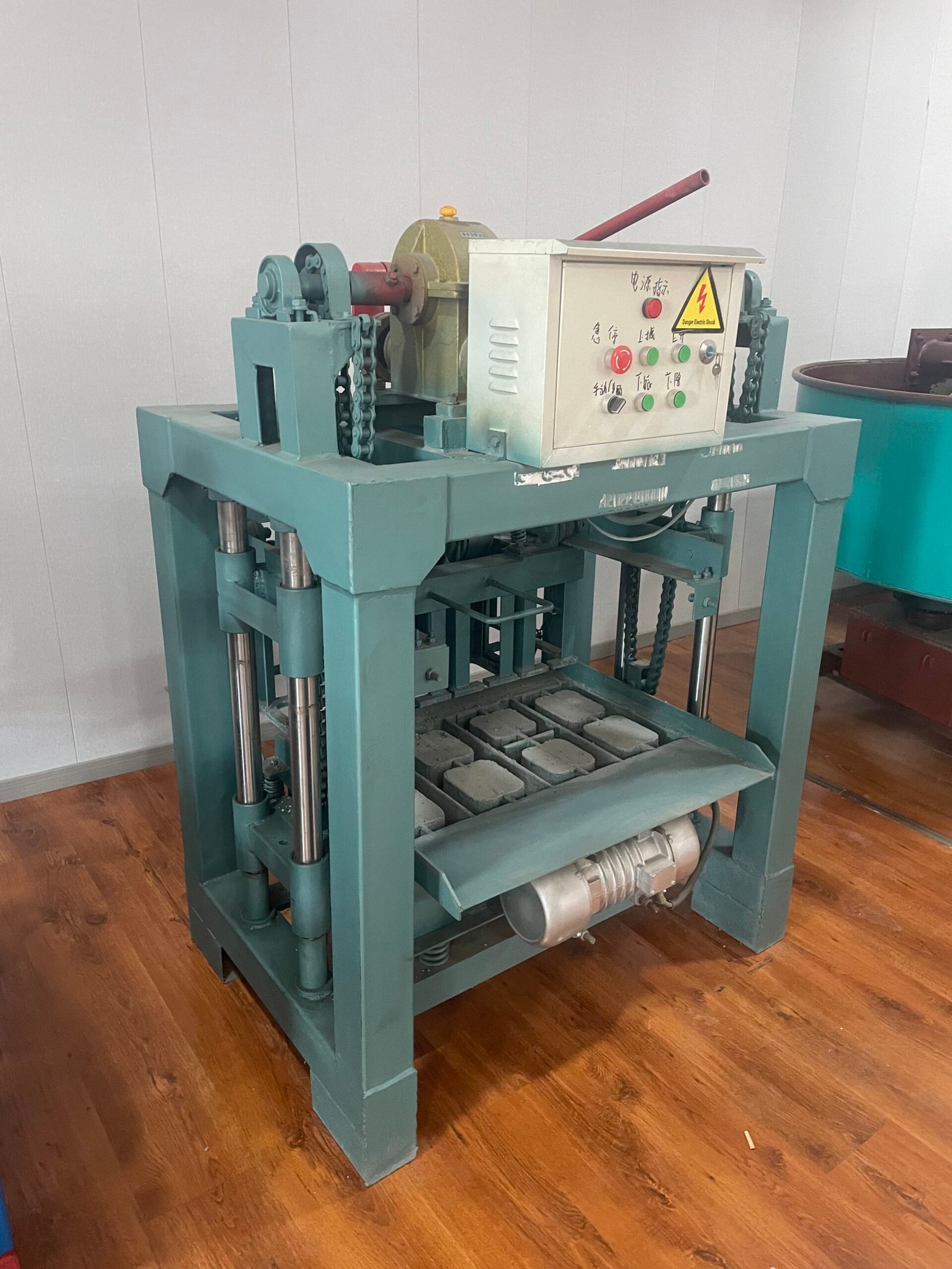

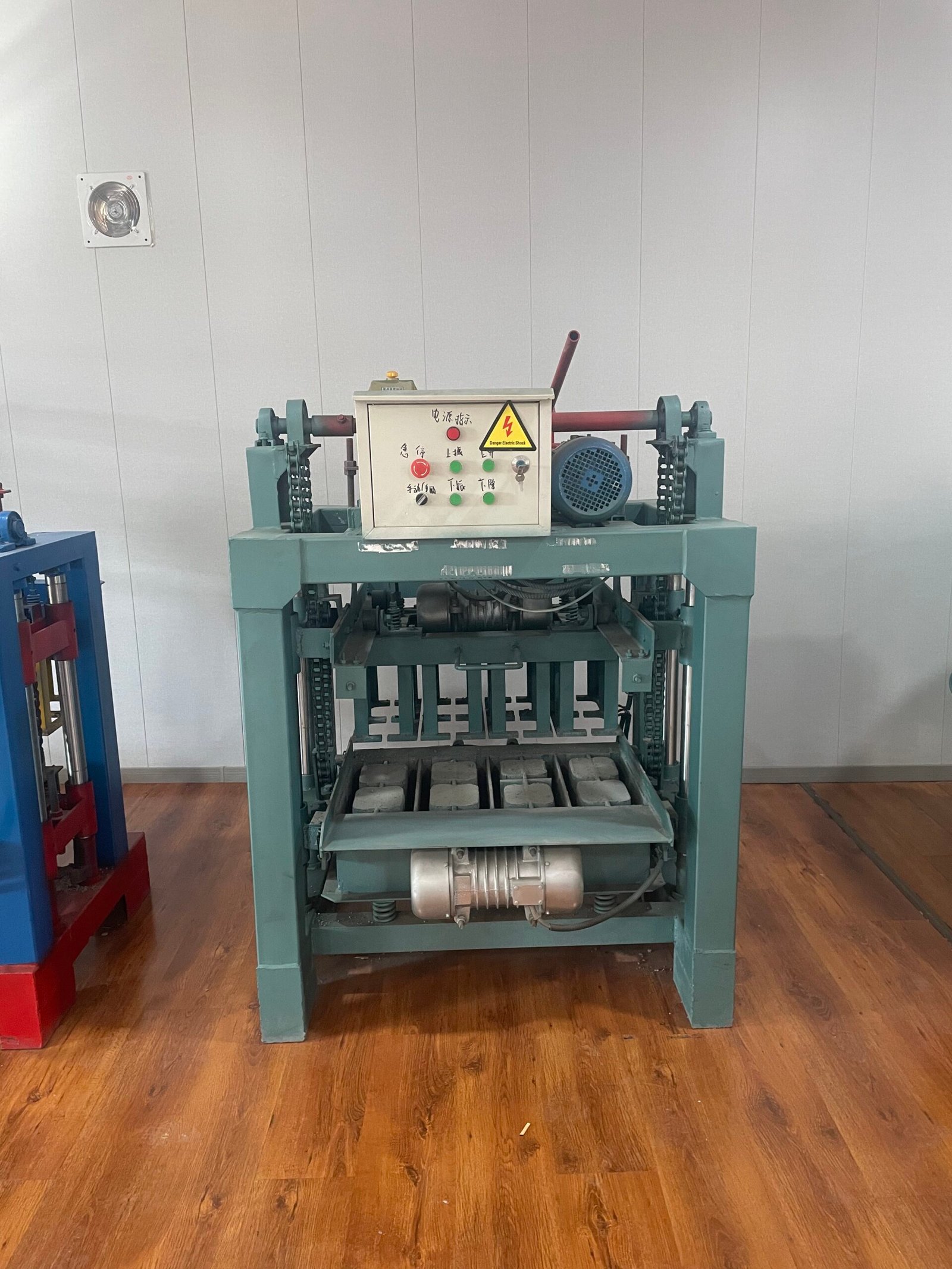

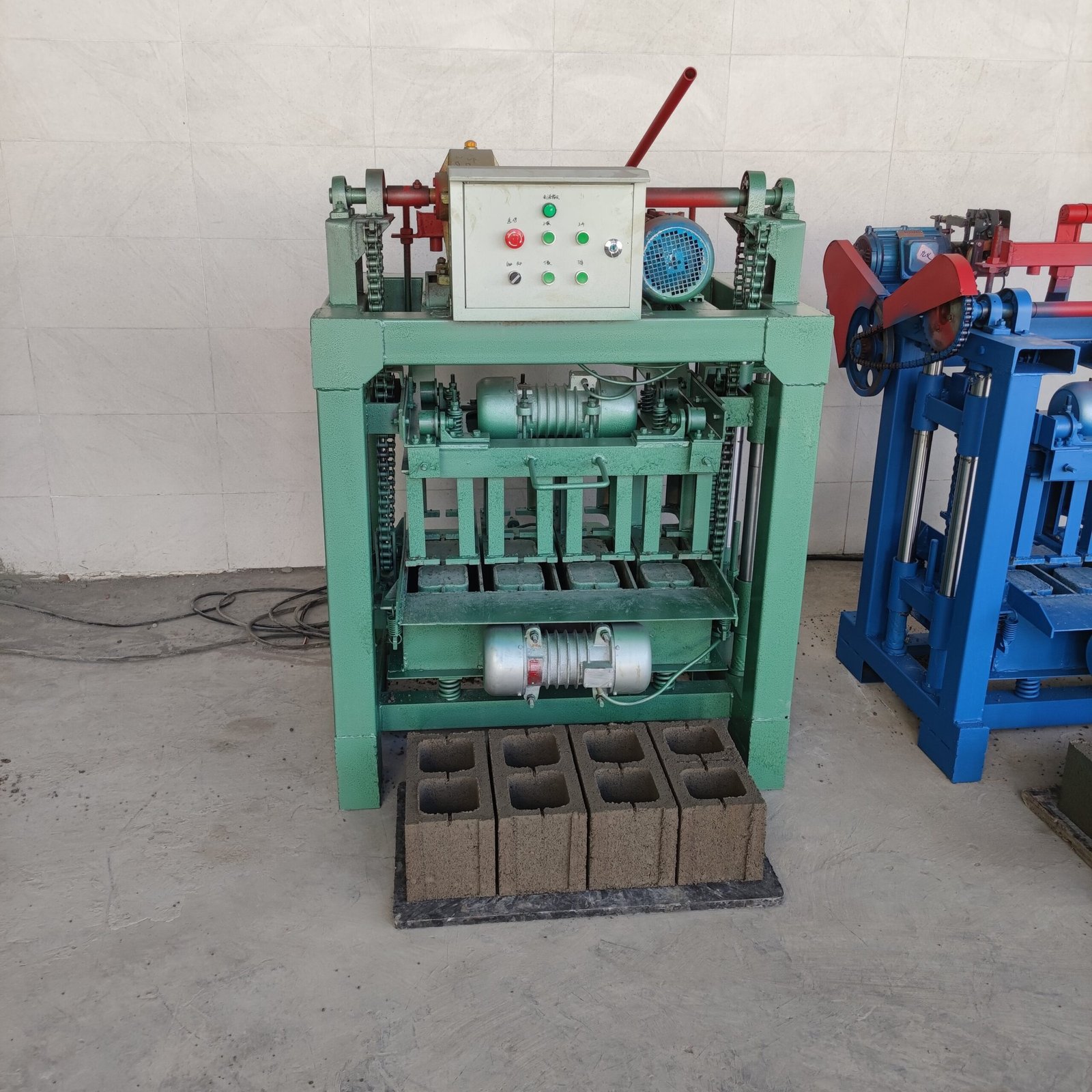

Original photographs show the machine from different angles and with hollow block samples.

Specifications

Verified equipment specifications

Model	VS-4-35B
Operation	Semi-automatic
Machine dimensions — without hopper (L × W × H)	1200 × 1300 × 1500 mm
Specified forming cycle	35 seconds; actual output depends on block type and operation
Pallet size	850 × 550 × 30 mm
Operators	1–2, as stated in the supplied specification sheet
Vibration motor power	1.1 kW × 3 (220 V and 380 V configurations)
Lifting motor power	3 kW at 380 V / 4 kW at 220 V
Total machine power	6.3 kW at 380 V / 7.3 kW at 220 V
Net weight — without hopper	630 kg
Packed weight — without hopper	680 kg
Wooden-case dimensions — without hopper	1250 × 1350 × 1750 mm
Net weight — with hopper	680 kg
Packed weight — with hopper	720 kg
Wooden-case dimensions — hopper configuration	1250 × 1600 × 1750 mm
